Automatic Bollard Control System
Functions and Parameters

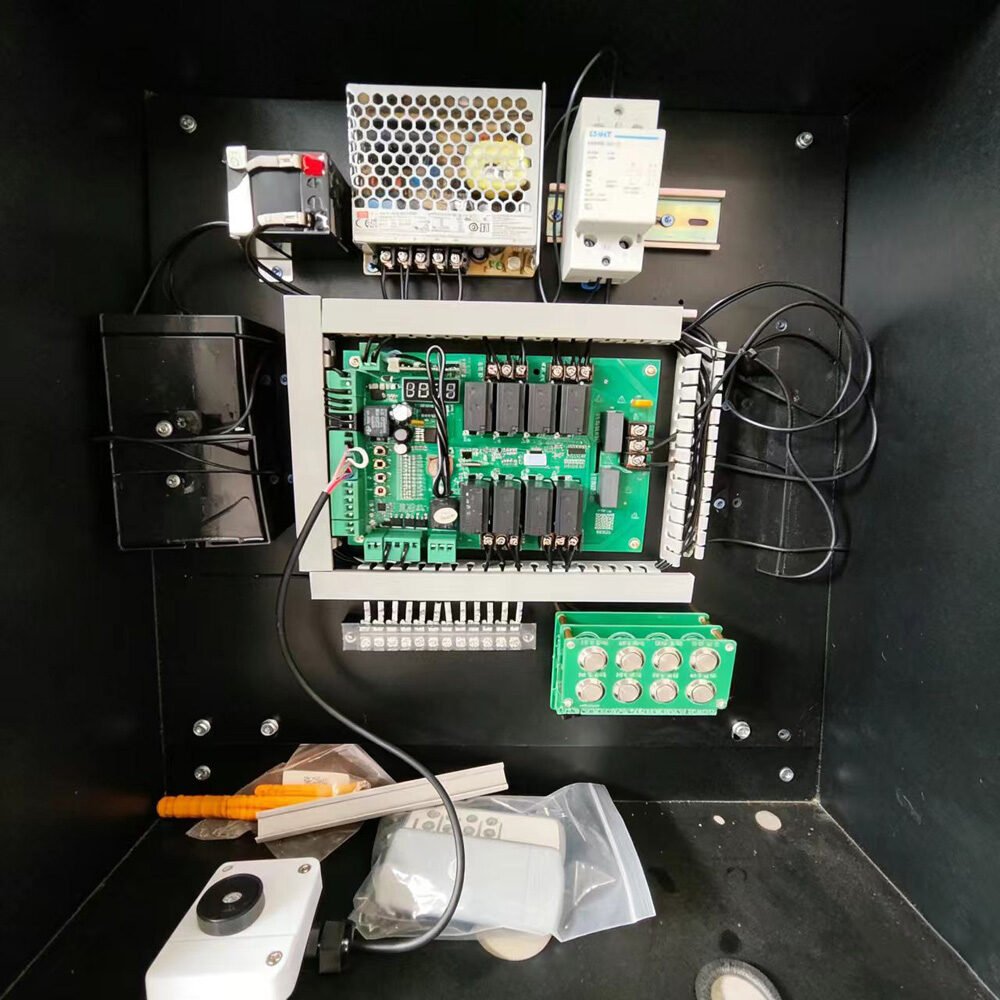

- Mainboard: Programmable MCU (microcontroller unit), system integration module.
- Input Power: AC220V or AC380V (selectable).
- Operating Temperature: -40°C to 60°C.
- Controllable Bollards: 1 to 50 lifting bollards.
- Control Cabinet Protection Rating: Compliant with IP65 rating.
- Protections: Over-current, voltage regulation, and circuit break.
- Protections: Lightning surge and leakage.
- Installation: Wall-mounted or floor-standing.
- Control Modes: Wired, remote, and emergency control.
- Power Supply for Light Strips: 220V to 12V transformer.
- Backup Power & Emergency Feature: Equipped with an EPS backup power unit and an emergency auto-lowering device. The cabinet contains an emergency release battery and operation buttons for manually lowering the bollards during a power outage.
- Cabinet Material: Carbon steel with baked enamel paint, corrosion-resistant, suitable for both outdoor and indoor use.

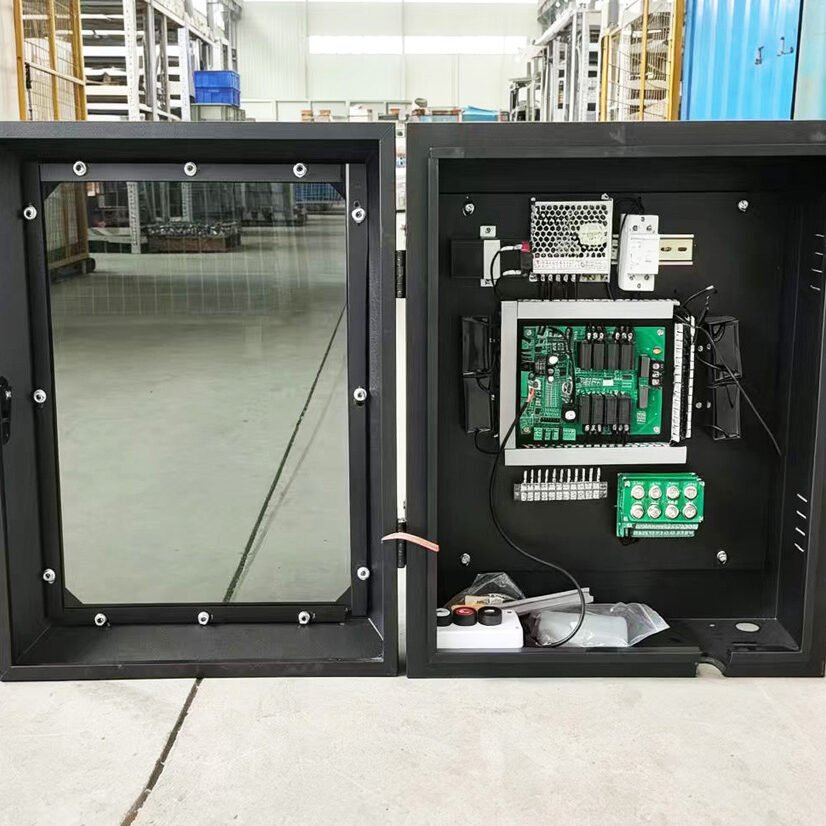

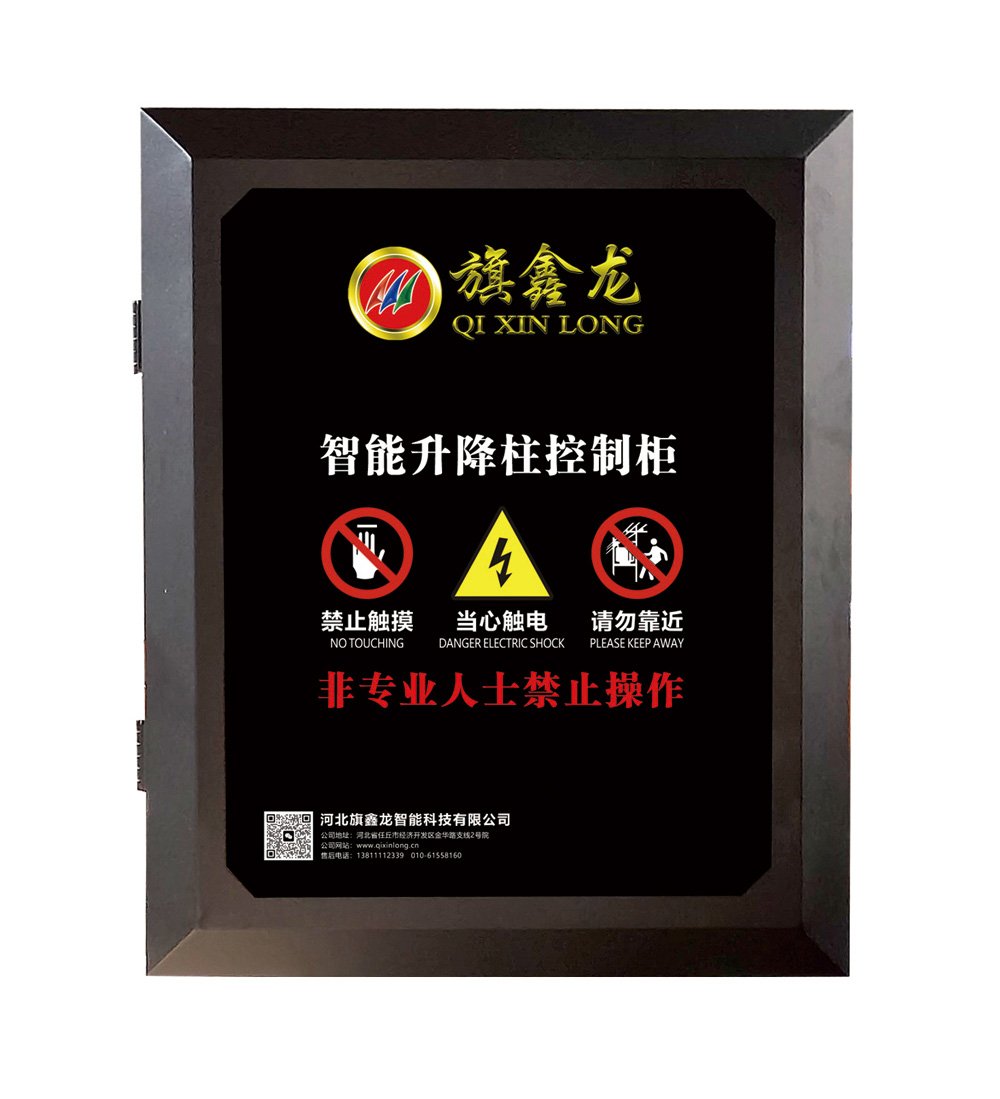

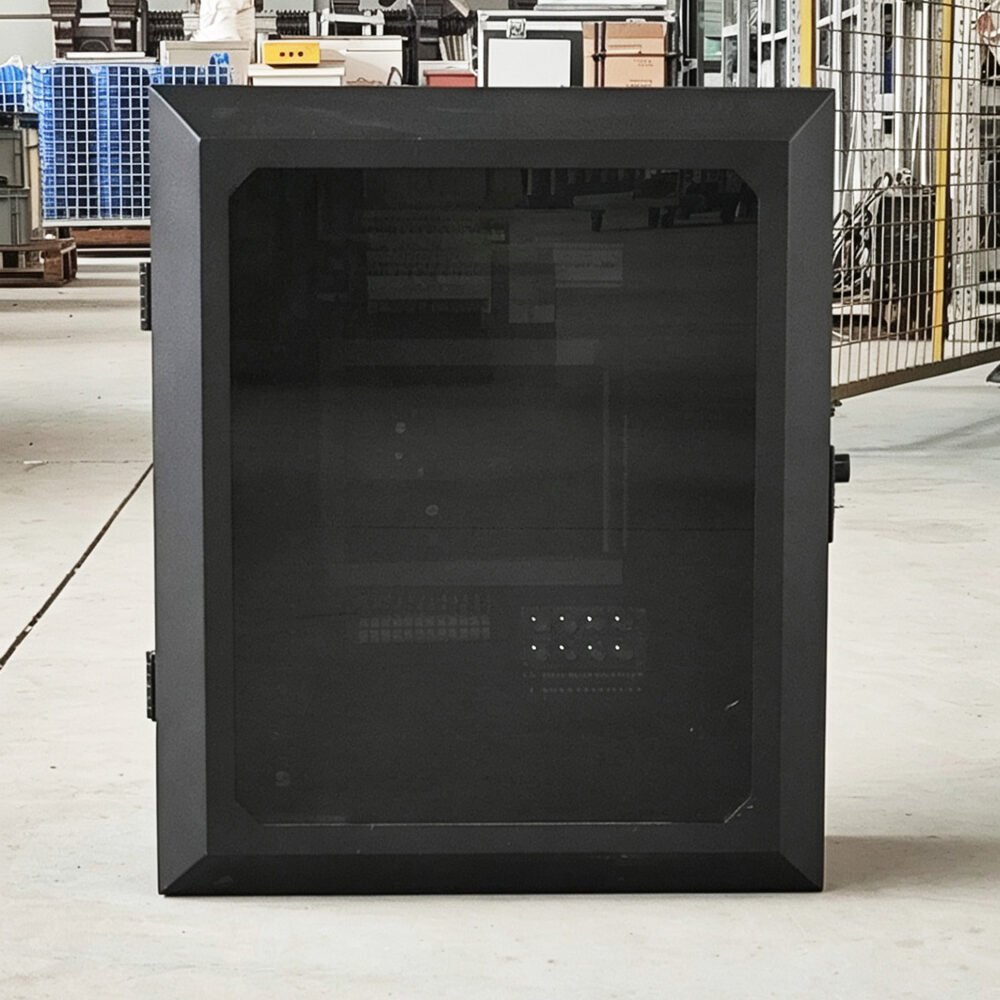

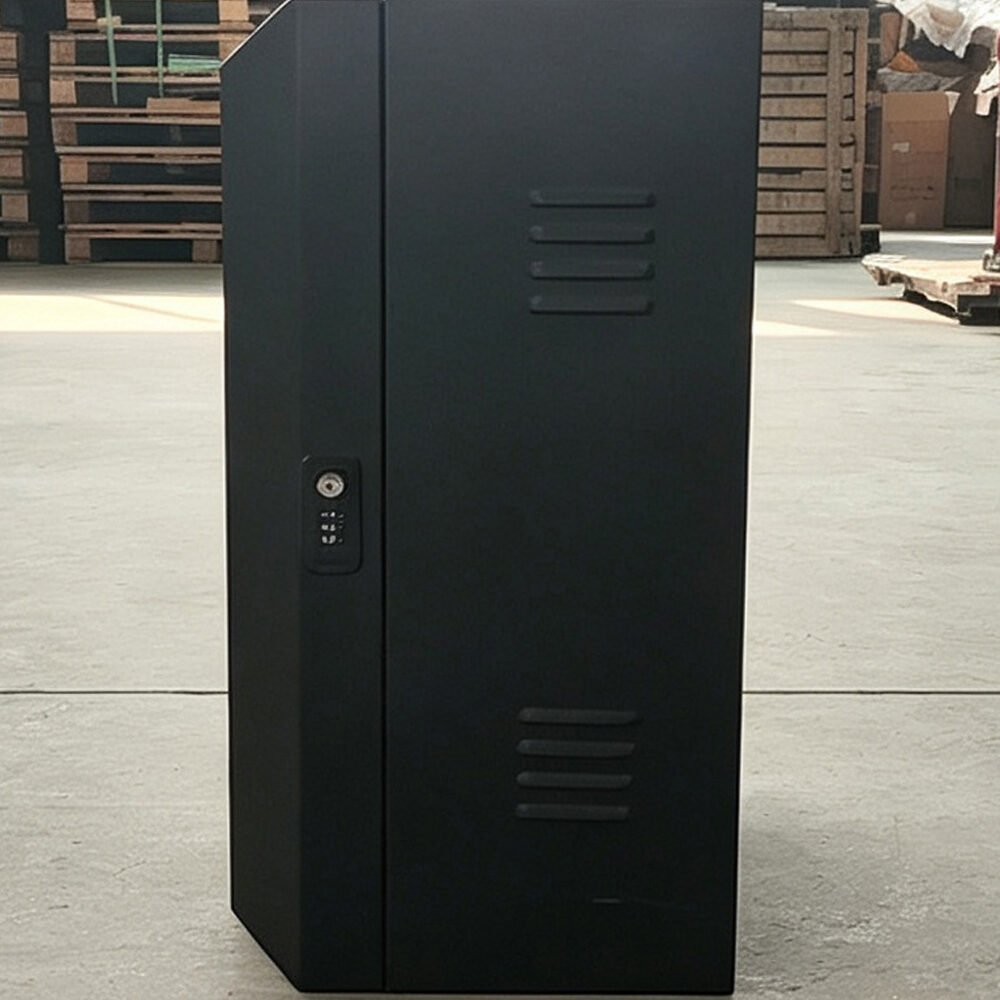

IP65 Waterproof Control Cabinet
Fully sealed design protects against rain, dust, and temperature fluctuations.
Complete Bollard Installation Engineering: Electrical Schematics & Waterproofing Details

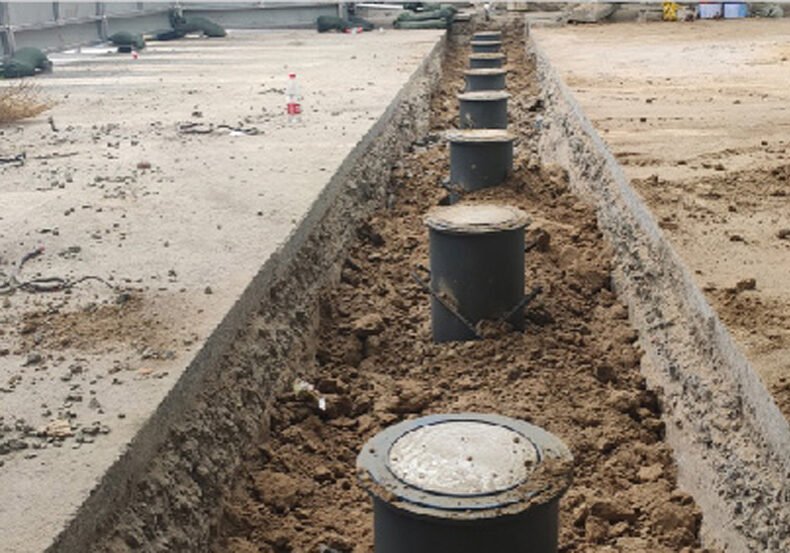

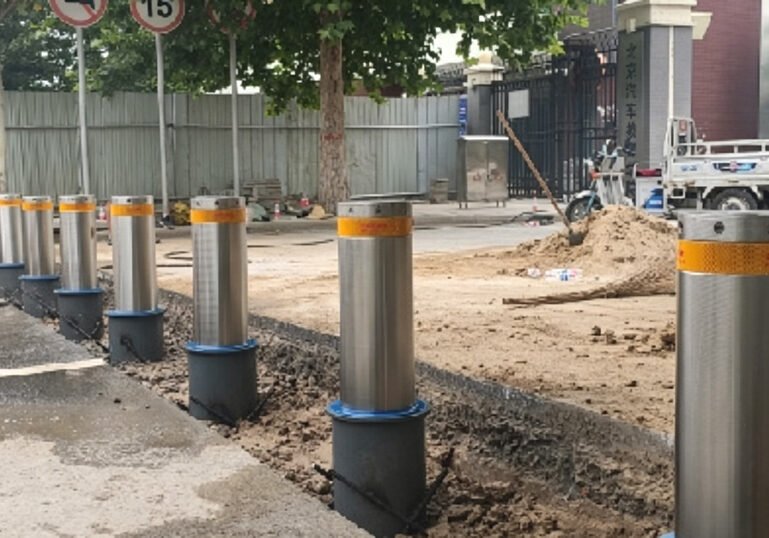

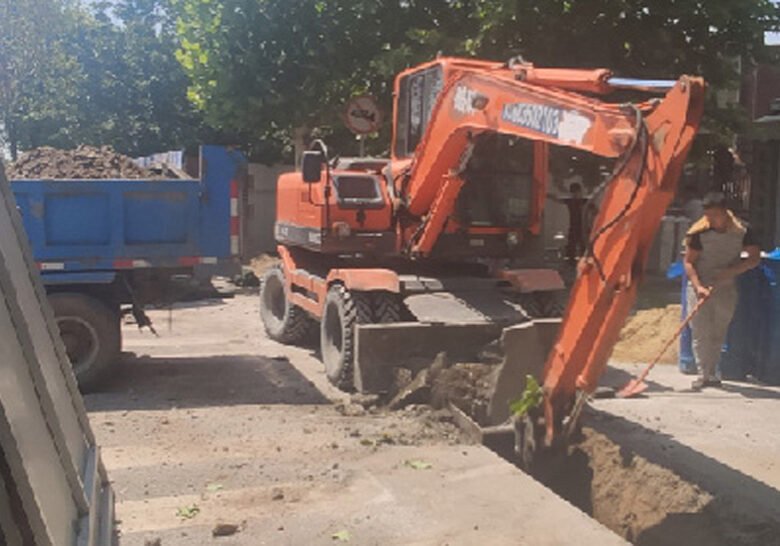

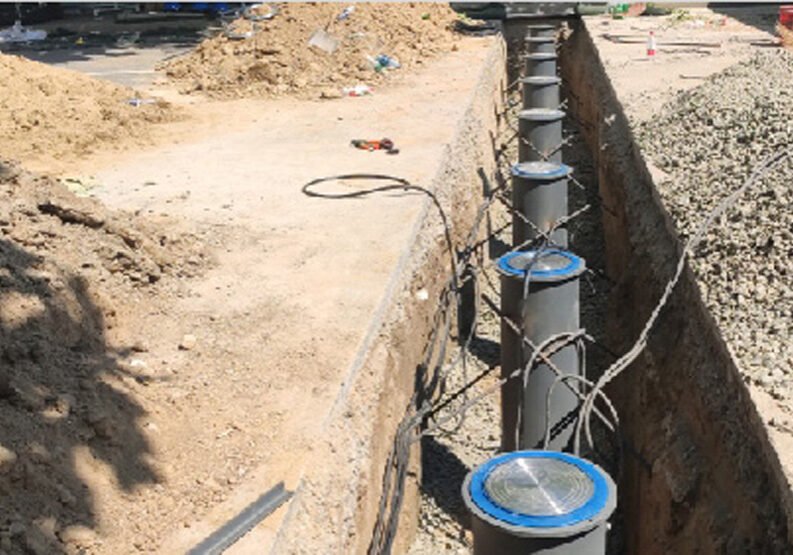

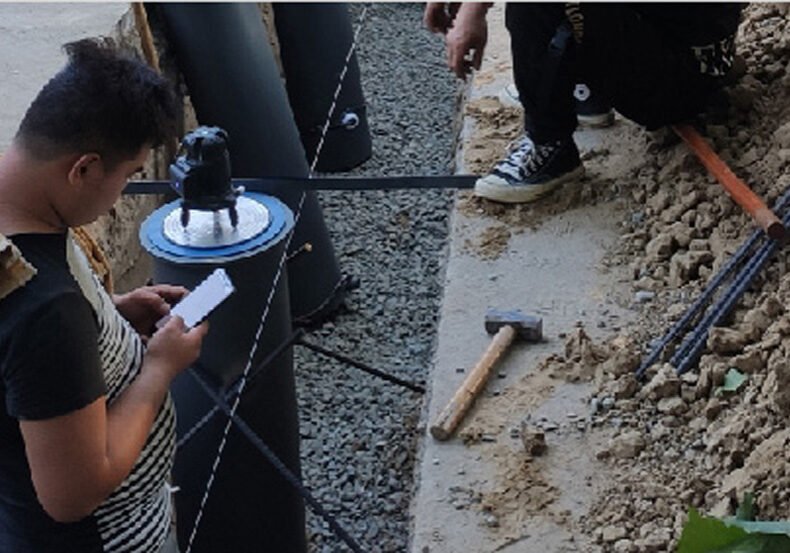

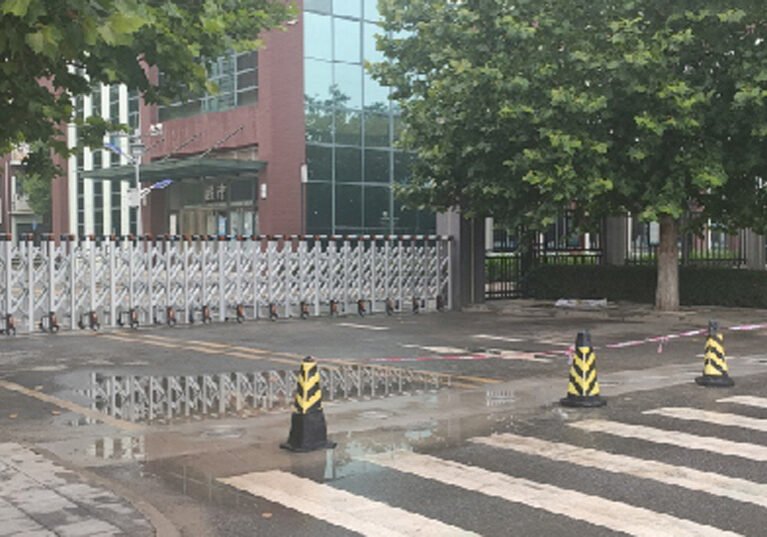

Professional-Grade Bollard Technical Package: Precision Electrical Design, Waterproofing & Drainage Structures, and Real-World Installation Case Studies.

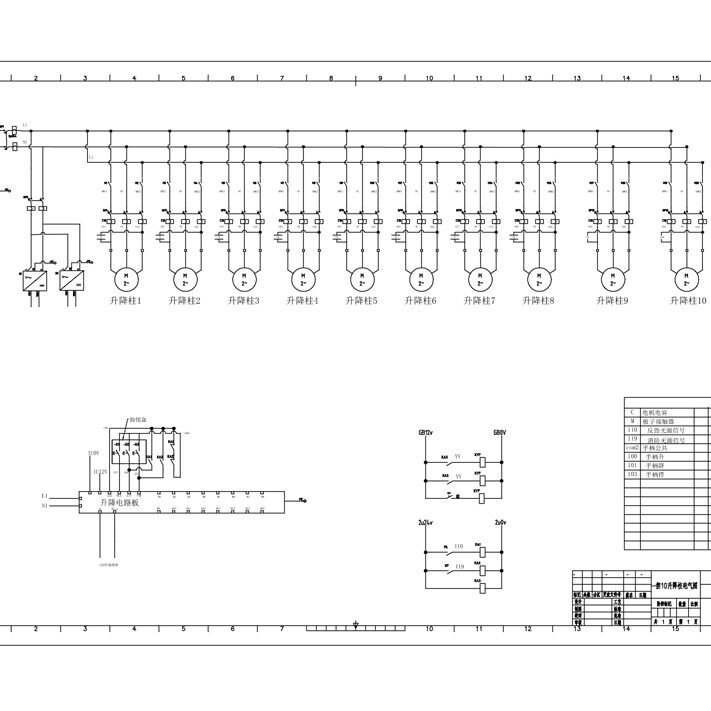

Control Cabinet PCB Schematic

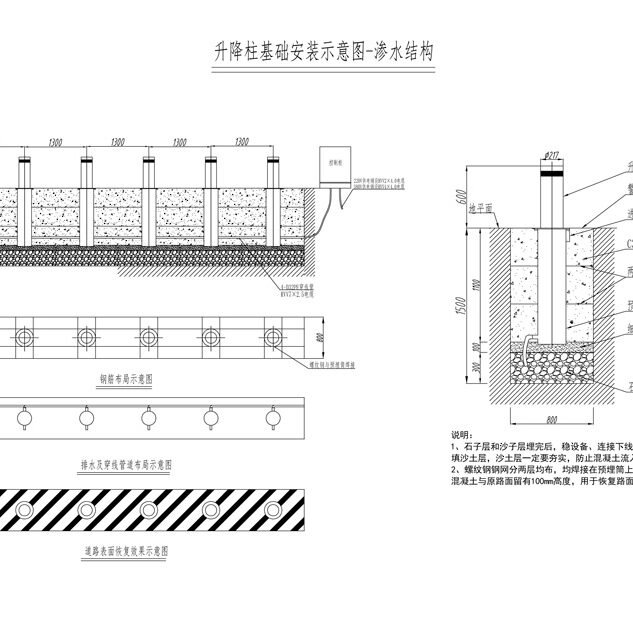

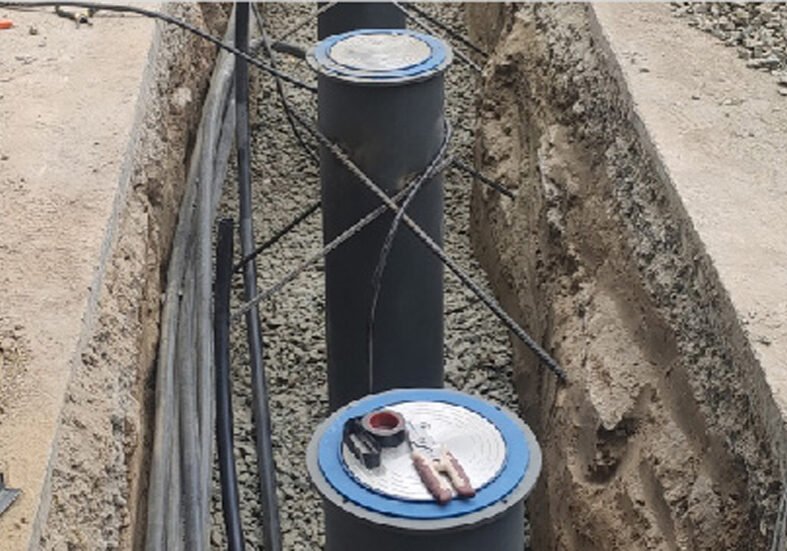

Bollard Base Waterproofing Detail

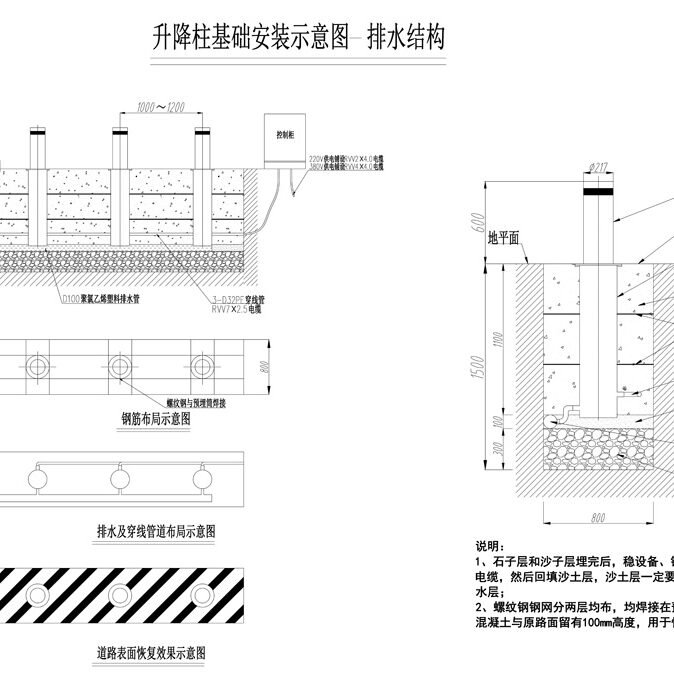

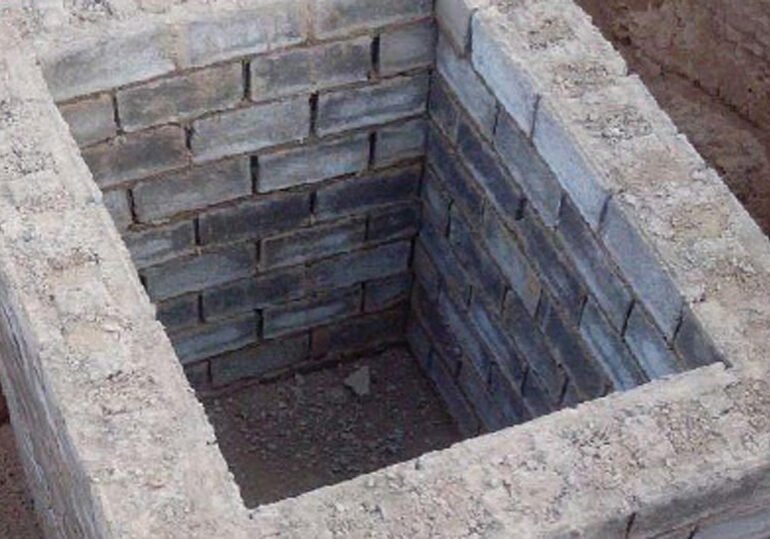

Bollard Drainage Construction Drawing
